libcamera::ipa::AwbAlgorithm Class Reference

A base class for auto white balance algorithms. More...

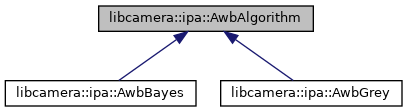

Inheritance diagram for libcamera::ipa::AwbAlgorithm:

Classes
class	ModeConfig
	Holds the configuration of a single AWB mode. More...

Public Member Functions
virtual int	init (const YamlObject &tuningData)=0
	Initialize the algorithm with the given tuning data. More...
virtual AwbResult	calculateAwb (const AwbStats &stats, unsigned int lux)=0
	Calculate AWB data from the given statistics. More...
virtual RGB< double >	gainsFromColourTemperature (double colourTemperature)=0
	Compute white balance gains from a colour temperature. More...
const ControlInfoMap::Map &	controls () const
	Get the controls info map for this algorithm. More...
virtual void	handleControls ([[maybe_unused]] const ControlList &controls)
	Handle the controls supplied in a request. More...

Protected Member Functions
int	parseModeConfigs (const YamlObject &tuningData, const ControlValue &def={})
	Parse the mode configurations from the tuning data. More...

Protected Attributes
ControlInfoMap::Map	controls_
	Controls info map for the controls provided by the algorithm.
std::map< controls::AwbModeEnum, AwbAlgorithm::ModeConfig >	modes_
	Map of all configured modes. More...

Detailed Description

A base class for auto white balance algorithms.

This class is a base class for auto white balance algorithms. It defines an interface for the algorithms to implement, and is used by the IPAs to interact with the concrete implementation.

Member Function Documentation

calculateAwb()

libcamera::ipa::AwbAlgorithm::calculateAwb ( const AwbStats &  stats, unsigned int  lux  )

pure virtual

Calculate AWB data from the given statistics.

Parameters

[in]	stats	The statistics to use for the calculation
[in]	lux	The lux value of the scene

Calculate an AwbResult object from the given statistics and lux value. A lux value of 0 means it is unknown or invalid and the algorithm shall ignore it.

Returns

The AWB result

Implemented in libcamera::ipa::AwbBayes, and libcamera::ipa::AwbGrey.

controls()

libcamera::ipa::AwbAlgorithm::controls ( ) const

inline

Get the controls info map for this algorithm.

Returns

The controls info map

gainsFromColourTemperature()

libcamera::ipa::AwbAlgorithm::gainsFromColourTemperature ( double  colourTemperature )

pure virtual

Compute white balance gains from a colour temperature.

Parameters

[in]

colourTemperature

The colour temperature in Kelvin

Compute the white balance gains from a colourTemperature. This function does not take any statistics into account. It is used to compute the colour gains when the user manually specifies a colour temperature.

Returns

The colour gains

Implemented in libcamera::ipa::AwbBayes, and libcamera::ipa::AwbGrey.

handleControls()

libcamera::ipa::AwbAlgorithm::handleControls ( [[maybe_unused] ] const ControlList &  controls )

inlinevirtual

Handle the controls supplied in a request.

Parameters

[in]

controls

The controls to handle

init()

libcamera::ipa::AwbAlgorithm::init ( const YamlObject &  tuningData )

pure virtual

Initialize the algorithm with the given tuning data.

Parameters

[in]

tuningData

The tuning data to use for the algorithm

Returns

0 on success, a negative error code otherwise

Implemented in libcamera::ipa::AwbBayes, and libcamera::ipa::AwbGrey.

parseModeConfigs()

int libcamera::ipa::AwbAlgorithm::parseModeConfigs ( const YamlObject &  tuningData, const ControlValue &  def = {}  )

protected

Parse the mode configurations from the tuning data.

Parameters

[in]	tuningData	the YamlObject representing the tuning data
[in]	def	The default value for the AwbMode control

Utility function to parse the tuning data for an AwbMode entry and read all provided modes. It adds controls::AwbMode to AwbAlgorithm::controls_ and populates AwbAlgorithm::modes_. For a list of possible modes see controls::AwbModeEnum.

Each mode entry must contain a "lo" and "hi" key to specify the lower and upper colour temperature of that mode. For example:

algorithms:
  - Awb:
    AwbMode:
      AwbAuto:
        lo: 2500
        hi: 8000
      AwbIncandescent:
        lo: 2500
        hi: 3000
      ...

If def is supplied but not contained in the the tuningData, -EINVAL is returned.

See also

controls::AwbModeEnum

Returns

Zero on success, negative error code otherwise

Member Data Documentation

modes_

libcamera::ipa::AwbAlgorithm::modes_

protected

Map of all configured modes.

See also

AwbAlgorithm::parseModeConfigs

---

The documentation for this class was generated from the following files:

• src/ipa/libipa/awb.h
• src/ipa/libipa/awb.cpp
